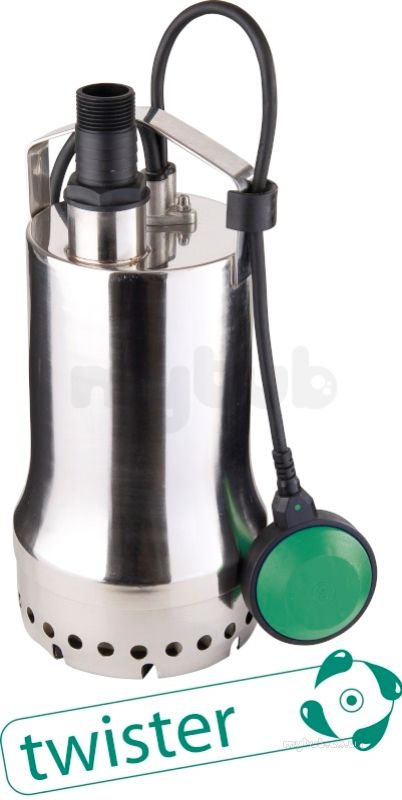

WILO TS32/9A 10M CA SUBMERSIBLE PUMP
Submersible pump suitable for stationary, fully automatic operation. A pressure hose of appropriate length is connected for mobile use, while a pipe is connected to the discharge port for stationary applications.A residual-current-operated protection switch for a trigger current of 30 mA that is to be provided on site (regulation concerning outdoor installation) must be utilised in accordance with EN 60335-2,41.
TSW in addition
Due to its design, the TSW ensures constant turbulence in the suction area of the pump. This results in a clean pump sump.
No fluid-related odours are generated, due to the turbulence and the elimination of the settling sediment connected with it. The maintenance intervals are extended.
Motor
Jacket-cooled, stainless steel-encapsulated, dry electric motor with built-in thermal overload protection and automatic reactivation. The capacitor is on the inside.
Cable
In accordance with DIN EN 60335-2-41, 10 m of electrical connection line is required for outdoor operation (however note that regulations vary from country to country).
Sealing of pumps/motor space
High operational reliability due to shaft sealing consisting of a mechanical seal on the pump side and a rotary shaft seal on the motor side as well as upstream dirt deflector for additional protection of the mechanical seal, oil barrier chamber.
£
£1549.15
