Wilo Rainsystem Af400-2mp305dm/rch2 Plus 1

• Ready-to-connect water-supply unit with 2 to 4 water-supply pumps as compact module for commercial and industrial rainwater utilisation
• For fully automatic supply with rainwater from ground reservoir or rainwater storage tank using submersible pumps as feeding pumps
• Depending on the pump dimensioning, greater distances between the system and rainwater storage tank can be bridged over with this hybrid system (see also Wilo submersible pumps, Wilo-Drain series)
• High-volume hybrid tank with all integrated functions offers needs-based replenishment of potable water in the consumer network when rainwater storage tanks are not full.
• Fully-electronic control unit for controlling the water supply and cistern pump, equipped with main switch, control switch for each pump with Manual-0-Automatic function and display of the operating status operation/fault for each pump as well as low-water display
• Depending on the pressure, pumps are switched on/off in cascade according to water demand.
• Diaphragm pressure vessel for energy savings in the event of smallest leakages in buildings
• Steady system control by means of cyclical pump cycling and integrated test run on idle pumps.
• Automatic fault-actuated switchover and peak-load cut-in guarantee maximum system availability.
• In the event of low water, the system is switched off by built-in dry-running protection including integrated electronic motor protection
• Switchgear outputs extensive signals; it also has additional potential-free contacts for collective run and fault signals
• System is ideally suited for connection to the building management system (BMS/DDC)

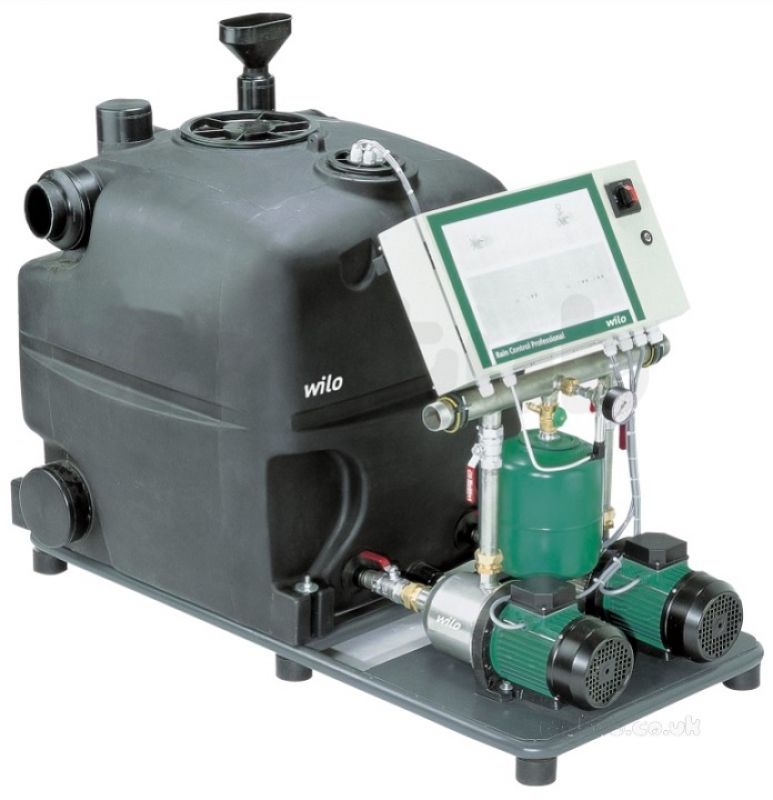

WILO RAINSYSTEM AF400-2MP305DM/RCH2+1
Automatic rainwater utilisation system with run-down tank container and 2 non-self-priming pumps

Manufacture:

Wilo

Notes:

• Low-noise due to standard multistage centrifugal pumps
• All parts that come in contact with the fluid are corrosion-free
• Highest operational reliability thanks to fully electronic Rain-Control Hybrid controller
• High economic efficiency due to needs-based fresh water replenishment
• High reliability thanks to flow- and noise-optimised overall concept
• Automatic control of the feeding pump
• System / level control in the low-volt range
• Approved according to the quality specifications of the RAL quality standard GZ 994

Material:

Pump housing made of 1.4301 stainless steel
Impeller made of Noryl
Shaft made of 1.4028 stainless steel
Mechanical seal made of ceramic/carbon
Stage chambers made of Noryl
Diaphragm expansion tank, steel, painted

Weight:

Operating pressure max. 10 bar
Protection class: IP 54
Connections:
Pressure pipe/pressure-side joint tubing R 1 ½
Inflow pipe HT 50
Overflow connection DN 100

Wilo
Code#:

2504588

MyTub Code#:

630628

PDF File:

Download pdf brochure 0.68mb
