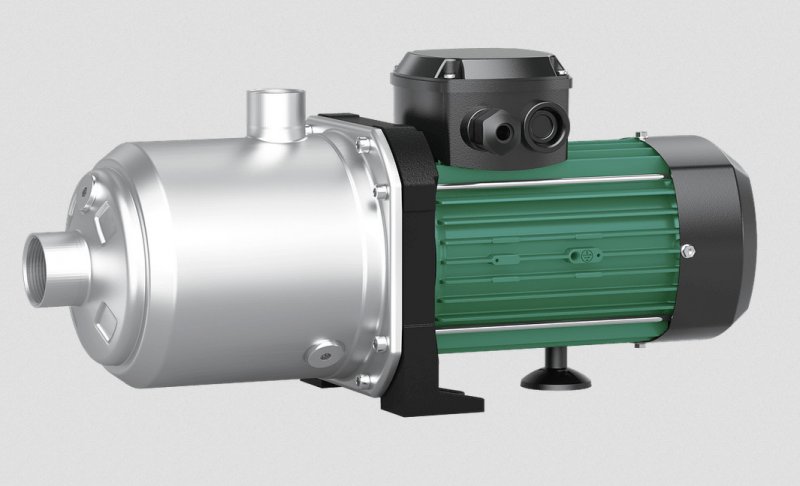

Wilo Medana Ch1-l.603-1/e/e/10t 4231489


Wilo Subson Submersible Pumps -  Wilo Medana Ch1-l.603-1/e/e/10t 4231489

Wilo product

23% 23 percent off rrp

Department: Wilo Subson Submersible Pumps
  Wilo Medana Ch1-l.603-1/e/e/10t 4231489
    Easy and fast commissioning/maintenance thanks to big holes for pump-filling and emptying
High reliability in terms of robustness and noise thanks to the neck ring design and corrosion-resistant lantern with cataphoretic coating
Compact design for an easy integration
All hydraulic parts which come into contact with the fluid, such as stage chambers, impellers and diffusors and the pump housing are made of stainless steel
Drinking water approval for all components that come in contact with the fluid (EPDM version)
  The non-self-priming horizontal multistage pump reaches high hydraulic performances. Its compact and robust design with corrosion-resistant components and the usability in ambient temperatures up to 50°C offers a big field of application for pump integration into larger systems.

The pump is suitable for water supply and pressure boosting, industrial circulation systems, process water and cooling water circulation systems. It can also be used in washing systems as well as for irrigation.
Manufacture: Wilo
Notes: Maximum operating pressure PN 10 bar
Discharge port Rp 1
Min. fluid temperature Tmin -20 °C
Max. fluid temperature Tmax 120 °C
Min. ambient temperature Tmin -15 °C
Max. ambient temperature Tmax 50 °C
Pump housing Stainless steel
Shaft Stainless steel
Shaft seal BQ1E3GG
Gasket material EPDM
Impeller Stainless steel
Mains connection 3~400 V, 50 Hz
Voltage tolerance ±10 %
Rated power P2 1.1 kW
Rated current IN 2.7 A
Rated speed n 2900 1/min
Insulation class F
Protection class motor IP55
Pipe connection on the suction side DNs Rp 1¼
Pipe connection on the discharge side DNd Rp 1
Material: Pump housing Stainless steel Impeller Stainless steel Shaft Stainless steel Shaft seal BQ1E3GG Gasket material EPDM
Wilo
Code#:
4231489
MyTub Code#: 835387

rrp£838.24
save£193.44
price£644.80

inc vat£773.76

Free UK delivery
email for overseas delivery charges

Stock Check Wilo Medana Ch1-l.603-1/e/e/10t 4231489 check stock here..
