Irc Flush Control Valve And Ceiling Mntg Kit

Cistermiser product

28% 28 percent off rrp

Department:

Cistermiser Flush Control Valve

Irc Flush Control Valve And Ceiling Mntg Kit

THIS IS THE FULL KIT FOR VALVE ONLY THE CODE IS IRC2/SVAB & FOR FIXING KIT ONLY THE CODE IS CISTERMISER IRC CEILING MOUNTING KIT

Reduces water consumption by up to 80%

Reduces washroom odours

Solenoid valve activated with PIR sensor

Hygiene Flush for periods of non-use

Ensures compliance with Water Regulations
Can be concealed to reduce the risk of vandalism

Mains or battery powered option in the same box - no external transformer required

Pipe, wall or ceiling mounted sensor: exposed, or flush with ceiling or wall

On DEFRAs Water Technology List; cost is tax-deductible

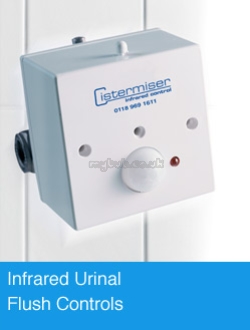

IRC FLUSH CONTROL Valve and CEILING MNTG KIT The IRC urinal flush control consists of two primary elements: a solenoid valve with compression fittings and the sensor module. The solenoid assembly is plumbed in on the water supply to the urinal cistern. The connection to the sensor is made either by directly mounting the Passive Infrared (PIR) sensor module onto the solenoid or using the floating socket supplied for a remote mounting. It is not necessary to adjust the sensor; the operating sequence is pre-programmed. It is possible to adjust the flow rate of the water into the cistern for maximum water economy. When fitting the brass solenoid assembly to the pipe the flow direction should be noted. If necessary the solenoid can be turned through 180 degrees to give access to the pin connections. The solenoid is supplied with an interchangeable valve seat which is used to increase the flow on low pressure supplies. The sensor module can be mounted on the unit itself or remotely on the wall or ceiling requiring a wire connection. If mounted remotely the sensor module may be surface mounted using a standard pattress box (not supplied) or recessed into a suspended ceiling using the ceiling mounting kit (CMK) which is supplied separately. A warning light on the front of the sensor module indicates low power if the unit is fitted with batteries and a manual push-button provides a self-test sequence

Manufacture:

Cistermiser

Notes:

Weight 0.092 kilo
Box is about 16cm square
