Harrier Gte/gt Burner Door 168mm Id15

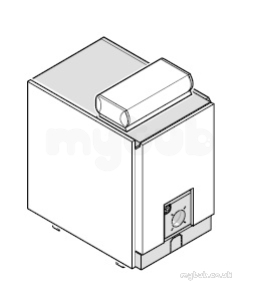

The Harrier GTE boilers are a range of cast iron sectional pressure jet boilers offering high efficiency operation, ease of maintenance, fuel flexibility and low emissions. Suitable for oil or gas operation the Harrier GTE range is supplied in a choice of 5 standard models, rated in outputs from 105kW (358,000 Btu/h) to 330kW (1,126,000 Btu/h) and has a maximum operating pressure of 6 bar. All models may have high/low operation.

Designed with a large combustion chamber, 3 pass horizontal flue ways incorporating fins and cast iron turbulators, the Harrier GTE ensures maximum heat transfer efficiency (up to 91.5% net).

The boilers are suitable for: combined indirect pumped domestic hot water and central heating systems; independent indirect pumped domestic hot water or central heating systems.

Fully pumped systems may be open vented or sealed.

The boilers are NOT suitable for:
1. Gravity DHW systems
2. Gravity heating systems
3. Direct domestic hot water supply
