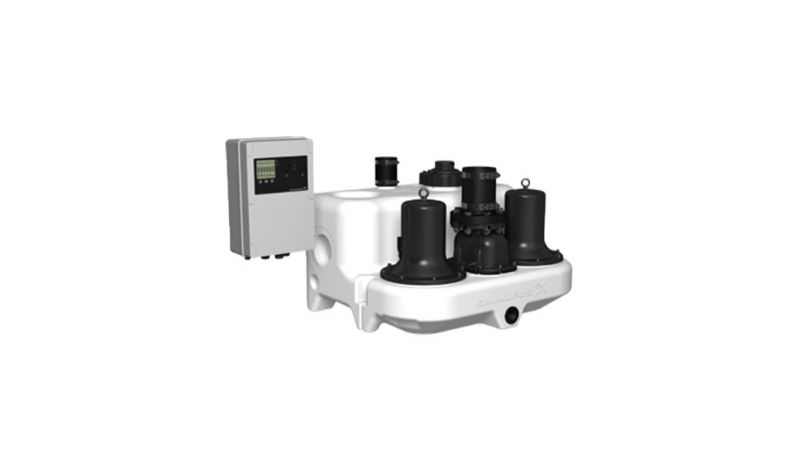

Grundfos Md 15.1.4 Lifting Unit Single P 97901086


Grundfos Category 3 Pump Equipment -  Grundfos Md 15.1.4 Lifting Unit Single P 97901086

Grundfos product

28% 28 percent off rrp

Department: Grundfos Category 3 Pump Equipment
  Grundfos Md 15.1.4 Lifting Unit Single P 97901086

  GRUNDFOS MD 15.1.4 LIFTING UNIT SINGLE P

Specifications

Product name: MD.15.1.4
Product No: 97901086
EAN number: 5710626080861
Price: On request
Technical
Max flow: 15.3 l/s
Head max: 9.2 m
Type of impeller: VORTEX
Maximum particle size: 50 mm
Approvals on nameplate: EN 12050-1
Valve type: FLAP VALVE
Materials
Impeller: LURANYL
Tank: LDPE
Gasket: NBR
Installation
Pump outlet: 80
Liquid
Liquid temperature range: 0 °C .. 40 °C
Density: 998.2 kg/m³
Manufacture: Grundfos
Notes: Electrical data
Number of poles: 4
C run: 60 µF
Power input - P1: 2 x 2.2 kW
Rated power - P2: 2 x 1.6 kW
Mains frequency: 50 Hz
Rated voltage: 1 x 230 V
Voltage tolerance: +10/-14 %
Start. method: direct-on-line
Max starts per. hour: 60
Rated current: 2 X 10,5 A
Cos phi - power factor: 0,95
Rated speed: 1410 rpm
Motor efficiency at full load: 75,5 %
Capacitor size - run: 60 µF
Enclosure class (IEC 34-5):: IP68
Insulation class (IEC 85): F
Motor protec: BIMETAL THERMAL SWITCH
Thermal protec: BIMETAL THERMAL SWITCH
Motor cable: 4 m
Cable type: H07 RN-F
Type of cable plug: CEE 2P+PE
Mains cable: 1.5 m
Cable size: 4X1,5+2X1
Mains cable: H05 VV-F
Controls
Type of control box: LC221.2
Operation mode: S3-50%,1MIN
Tank
Total volume of tank(s): 130 l
Total effective volume of collecting tank at 180 mm inlet: 49 l
Total effective volume of collecting tank at 250 mm inlet: 69 l
Total effective volume of collecting tank at 315 mm inlet: 86 l
Others
Net weight: 119 kg
Grundfos
Code#:
97901086
MyTub Code#: 701286
PDF File: Download pdf brochure 8.60mb

rrp£19473.43
save£5498.38
price£13975.05

inc vat£16770.06
