Dwyer 1950 1 Difference Pressure Switch 0.4 Inch -1.6 Inch Wg

28% 28 percent off rrp

Department:

Dwyer Instruments Magnehelic Gauges

Dwyer 1950 1 Difference Pressure Switch 0.4 Inch -1.6 Inch Wg

Service: Air and non-combustible, compatible gases
Wetted Materials: Consult factory Temperature Limits: -40 to 140°F (-40 to 60°C)
0 to 140°F (-17.8 to 60°C)for 1950P-8, 15, 25, and 50. -30 to 130°F (-34.4 to 54.4°C) for 1950-02
Pressure Limits: Continuous: 1950's - 45" w.c. (0.11 bar)
1950P's - 35 psi (2.41 bar)
1950P-50 only - 70 psi (4.83 bar). Surge: 1950's - 10 psi (0.69 bar)
1950P's - 50 psi (3.45 bar)
1950P-50 only - 90 psi (6.21 bar)
Enclosure Rating: NEMA 3 (IP54), NEMA 7 and 9
Switch Type: Single-pole double-throw (SPDT)
Electrical Rating: 15 A @ 125, 250, 480 VAC, 60 Hz. Resistive 1/8 HP @ 125 VAC, 1/4 HP @ 250 VAC, 60 Hz
Electrical Connections: 3 screw type, common, normally open and normally closed
Process Connections: 1/8" female NPT
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations
Set Point Adjustment: Screw type on top of housing
Weight: 3.25 lb (1.5 kg)
1950-02 model 4.4 lb (2 kg)
Agency Approvals: CE, UL, CSA, FM

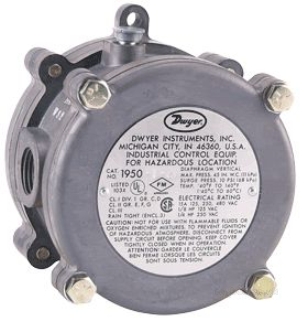

DWYER 1950 1 DIFF PRESS SW 0.4 Inch -1.6 Inch WG Model 1950 Explosion-proof Differential Pressure Switch combines the best features of the popular Dwyer Series 1900 Pressure Switch with an integral explosion-proof and weatherproof housing, making it an exceptional value for either application. It is CE, UL and CSA listed, FM approved for use in Class I, Div 1, Groups C and D, Class II Groups E, F, and G and Class III hazardous atmospheres NEMA 7 & 9. Raintight NEMA 3 (IP54). Weatherproof features include a drain plug and O-ring seal in cover. Electrical connections are easily made by removing front cover. For convenience the set point adjustment screw is located on the outside of the housing. Twelve models offer set points from .03 to 20 w.c. (7.5 to 5 kPa) and from .5 to 60 psi (0.035 to 3.5 bar). The unit is very light and compact - about half the weight and bulk of other explosion-proof or weatherproof switches with separate enclosures.

Manufacture:

Dwyer

Notes:

Model Number: 1950-1-2F
Voltage: 240v

Weight:

Service: Air and non-combustible, compatible gases. Wetted Materials: Consult factory. Temperature Limits: -40 to 140°F (-40 to 60°C); 0 to 140°F (-17.8 to 60°C)for 1950P-8, 15, 25, and 50. -30 to 130°F (-34.4 to 54.4°C) for 1950-0

Dwyer
Code#:

1950-1-2F

MyTub Code#:

308596

PDF File:

Download pdf brochure 0.32mb
