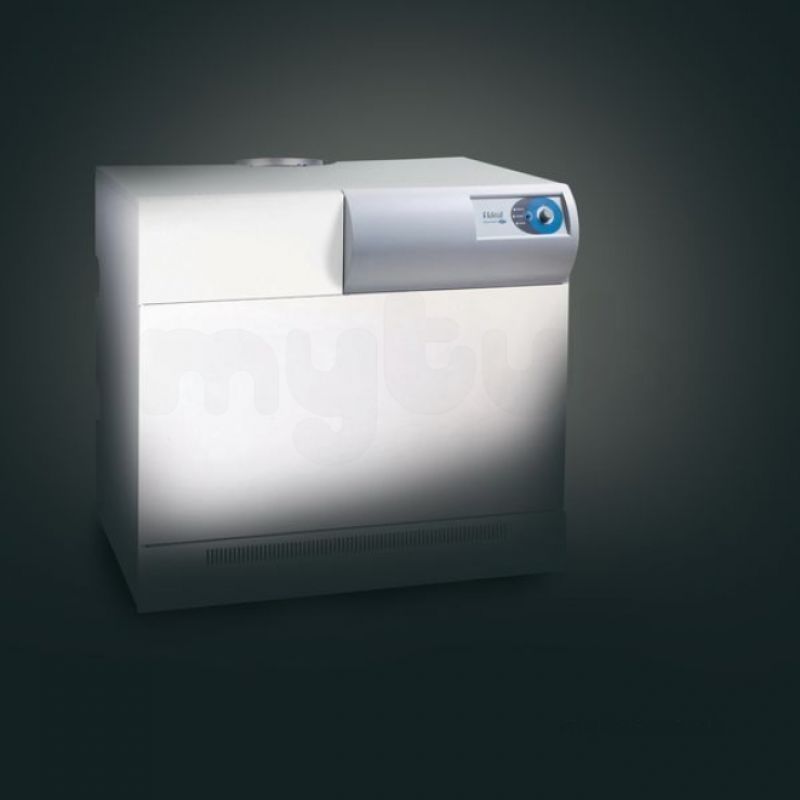

Concord Cxs 110/h Cf Ng 110kw Exc Controls

Ideal Boilers product

23% 23 percent off rrp

Department:

Ideal Commercial Gas Boilers

Concord Cxs 110/h Cf Ng 110kw Exc Controls

Concord CXS/H & DH

18 Models with outputs 40-120 kw
Natural gas
Fully automatic ignition
High/low operation
CXS - status lights indicating boiler on, overheat and lockout
CXSD - advanced electronic control with LGD display
Integral low NOx design (class 3)
Proven reliability

CONCORD CXS 110/H CF NG 110KW EXC CONTROLS All models in the range have increased efficiencies, at both full and part load, and conform to the stringent requirements of the new Building Regulations (Conservation of Fuel and Power). They are designed to achieve this whether installed as single boilers or in multiples. The simplest solution to the latest needs Ideal Boilers has further improved its leading Concord portfolio with the CXA and CXS/CXSD ranges, in outputs ranging from 40 to 120kW. The whole range now provides the widest selection of boilers to match customer requirements.

Ideal concords CXA range continues to lead the market with competitive small atmospheric gas boilers for commercial or industrial applications. The CXA incorporates on/off automatic ignition via an intermittent pilot. Its new modern control fascia incorporates warning lights for boiler on; overheat lockout and burner lockout. Inside, new gas valves and controls are factory fitted as standard.

The CXS/CXSD range builds on the CXA range with the incorporation of high/low operation to provide greater system efficiency. The range gives the choice of easy to operate CXS models with eh simple analogue control or enhanced CXSD models which feature comprehensive electronic control for system operation, commissioning and diagnostics. Optional remote indication kits provide volt free contacts for boiler performance monitoring. Both CXA and CXS/CXSD ranges are available in 9 model sizes from 40 kW to 120 kW. New 110 kW and 120kW models are particularly space efficient and suitable for installation in modular configurations just 6 boilers can provide up to 720 kW output.

All models in the new Concord ranges are suitable for low headroom boiler houses, feature pump overrun timer as standard and have maximum working pressure increased to 6 bar.

Manufacture:

Ideal Boilers

Notes:

Dim 1 (mm): 1000
Dim 2 (mm): 600
Dim 3 (mm): 138.5
EDP Code: 490
Flue_mm: 250
Fuel Type: Natural Gas
KW: 110
Model Number: CXS110/H CF
Range: Concord
Warranty: 1 year parts and labour warranty
