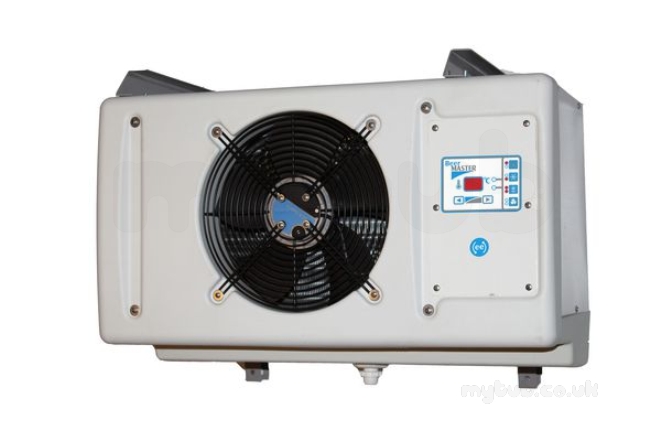

Beermaster Bmie407-37 Ec Fan Evaporator

27% 27 percent off rrp

Department:

Climate Center Beermaster

Beermaster Bmie407-37 Ec Fan Evaporator

Nominal sound pressure levels: 53 to 58 dB(A) at 3m
Construction: Compact steel chassis design. White, single piece highly durable ABS front panel, incorporating fan mounting and controls
Drain tray: Durable ABS with 3/4 inch BSP connection. Simple removal for cleaning. Fittings easily available to connect to speedfit, copper, polypipe etc. as a standard drain fitting. Wolseley part number 517588
Controls: Electronic controller, mounted in a subassembly with the fan capacitors and pre-made wiring connections
Incorporates an off cycle defrost regime, which automatically initiates if the optional defrost sensor is fitted. Expansion valve and solenoid valve
Fansets: Single phase, EC high efficiency, low noise external rotor design, rated to IP44 complete with air straightener
Air Throw: Up to 17m for even cellar temperatures
Energy saving: Option to operate twin and three fan evaporators on a single fan during off cycle or heating mode. An off cycle defrost will initiate all fans
Air heater: Single fan - 1.1 kw, twin/triple fan - 2.2kw, operated by controller, which incorporates a dead band control
Liquid Line: Inlet connection with filter drier and solenoid valve
Service: Front panel, drain tray and end panels are fully removable providing full access to unit, without the need to release from the ceiling or wall brackets. Front mounted controller allows access without removing platework
Connections: End plates wrap around back of evaporator. Removal provides full access to the pipework connections
Installation: Easily accessible endplates. All components fully accessible from one side.

The New Beermaster from Climate Center is a flexible packaged cooling system, designed to fully incorporate the demands of the modern cellar cooling industry. An extensive range of reliable, efficient, service friendly condensing units and evaporators catering for cooling capacities between 3 and 15 kW, with rated ambient temperatures up to 38°C. Selections are available with cellar temperatures from 4°C to 12°C, which will meet the increasing range of cooling requirements for pubs, clubs and wine bars. In addition, sound levels have been minimised throughout the range of BMO condensing units and BMIE evaporators. Consisting of compact BMO outdoor, weatherproof, housed units aligned with space saving BMIE evaporators now incorporating EC fan technology, the Climate Center Beermaster range is the solution to all cellar cooling applications. Operating two BMIE evaporators will successfully cool cellars with irregular shapes (with one BMO condensing unit.) Temperature is controlled from one evaporator, the other acting as a slave unit. Beermaster BMO condensing units are designed to minimise sound levels, which together with an acoustic kit option enables a further 6 dB(A)reduction, in noise sensitive locations. The BMIE evaporator compact design incorporates a highly efficient EC axial fanset, reducing sound, resonance and vibration, therefore minimising sound break out into bar and accommodation areas.

Manufacture:

Wolseley Own Brand

Notes:

Brand : Beermaster
Dim 1 (mm) : 455
Dim 2 (mm) : 740
Dim 3 (mm) : 380
Range : Beermaster
Warranty : 1 Year
Electric Supply : R407C
Refrigerant Suitability : R407C
Fans : 1
Cooling Operating Range C : 4 to 13 deg C
Fuse Size (Amps) : 16
Max Pipe Run (m) : 1,2
Run Amps : 5,5
Start Amps : 0,7
Max Pipe Run (m) : 1,2

Wolseley Own Brand
Code#:

100482897

MyTub Code#:

734596

£~~2508.98~~
save

£669.06
£1839.92

inc vat £2207.90
